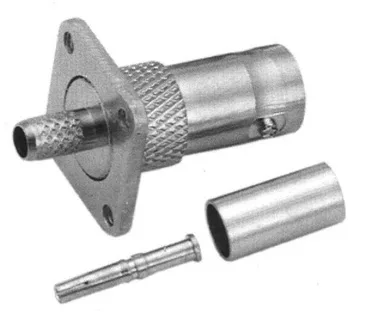

کانکتور کابل کواکسیال ولوسیتی مدل V-7024
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
| Subtypes | |
| V-7024 | Square Flange Receptacle Jack Crimp UG-1802/U |
| Electrical Characteristics | |
| Impendence | 50 ohm – 75 ohm |
| Frequency Range | 0-4 GHz – 0-1 GHz |
| V.S.W.R | Straight : 1.3 Max , R/A : 1.5 Max |
| Insulation loss | 0.2 dB max @ 3GHz |
| Insulation resistance | 5000 Megaohms min. |
| Contact resistance | |
| Center Contact | 3 milliohms Max |
| Outer conductor | 2 milliohms Max |
| Working voltage in VRMS( at sea level / at 70000ft) | 500 volts rms max at sea level |
| Dielectric withstanding voltage in VRMS ( at sea level ) | 1500 volts rms max at sea level |
| Mechanical Characteristics | |
| Durability | 500 matings |
| Force to engage and disengage | – |
| Proof torque | 15 in-lbs min |
| Coupling mechanism retention force | – |
| Cabling retention | RG58, 141, 142, 223… > 40 lbs min RG174, 188, 316…. > 20 lbs min RG174, 188, 316…. > 20 lbs min RG59, 62A, 210…. > 40 lbs mi |
| Center contact retention force | 6 lbs min |
| Environmental Characteristics | |
| Temperature Range | -65°C to +165°C |
| Thermal Shock | MIL-STD-202 Method 107 Test Cond B |
| Corrosion (salt spray) | MIL-STD-202 Method 101 Test Cond B |
| Vibration | MIL-STD-202 Method 204 Test Cond B |
| Shock | – |
| Materials | |
| Body(nut)/Center Male contact/Outer Contact | Brass |
| Center female contacts | Brass / Beryllium Copper |
| Ferrules | Brass |
| Insulator | Teflon |
| Plating | |
| Body | gold, Silver per requirement, Nickel, |
| Coupling nut / Design | – |
| Center Contact | Gold |
| Outer Contacts / Design | – |
| 12VDC power output | – |
| Downloads | |
| Datasheet (EN) | Download |
