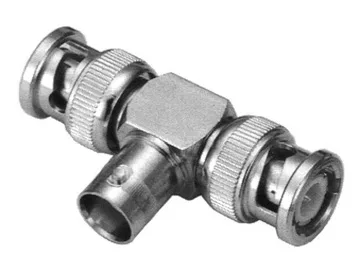

کانکتور کابل کواکسیال ولوسیتی مدل V-7079

Name: کانکتور کابل کواکسیال ولوسیتی مدل V-7079
Availability: instock

برای دریافت مشاوره با ما در ارتباط باشید.

با پست پیشتاز

و ۷ روز هفته

و تضمین اصالت

افتخار ماست

	Subtypes
	V-7079	Tee Jack-Plug / Plug
	Electrical Characteristics
	Impendence	50 ohm – 75 ohm
	Frequency Range	0-4 GHz – 0-1 GHz
	V.S.W.R	Straight : 1.3 Max , R/A : 1.5 Max
	Insulation loss	0.2 dB max @ 3GHz
	Insulation resistance	5000 Megaohms min.
	Contact resistance
	Center Contact	3 milliohms Max
	Outer conductor	2 milliohms Max
	Working voltage in VRMS( at sea level / at 70000ft)	500 volts rms max at sea level
	Dielectric withstanding voltage in VRMS ( at sea level )	1500 volts rms max at sea level
	Mechanical Characteristics
	Durability	500 matings
	Force to engage and disengage	–
	Proof torque	15 in-lbs min
	Coupling mechanism retention force	–
	Cabling retention	RG58, 141, 142, 223… > 40 lbs min RG174, 188, 316…. > 20 lbs min RG174, 188, 316…. > 20 lbs min RG59, 62A, 210…. > 40 lbs mi
	Center contact retention force	6 lbs min
	Environmental Characteristics
	Temperature Range	-65°C to +165°C
	Thermal Shock	MIL-STD-202 Method 107 Test Cond B
	Corrosion (salt spray)	MIL-STD-202 Method 101 Test Cond B
	Vibration	MIL-STD-202 Method 204 Test Cond B
	Shock	–
	Materials
	Body(nut)/Center Male contact/Outer Contact	Brass
	Center female contacts	Brass / Beryllium Copper
	Ferrules	Brass
	Insulator	Teflon
	Plating
	Body	gold, Silver per requirement, Nickel,
	Coupling nut / Design	–
	Center Contact	Gold
	Outer Contacts / Design	–
	12VDC power output	–
	Downloads
	Datasheet (EN)	Download
