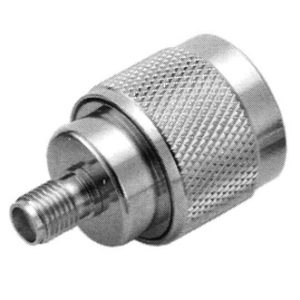

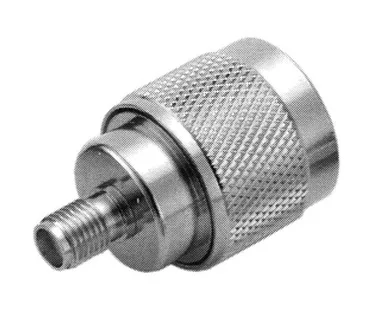

کانکتور کابل کواکسیال ولوسیتی مدل V-7833

Name: کانکتور کابل کواکسیال ولوسیتی مدل V-7833
Availability: instock

برای دریافت مشاوره با ما در ارتباط باشید.

با پست پیشتاز

و ۷ روز هفته

و تضمین اصالت

افتخار ماست

Sub types
V-7833	Jack to N plug
Impedance	50 ohm
Frequency Range	0-12.4 GHz on flexible Cable 0-18 GHz on Semi- Rigid cable
Temperature Range	-65°C to +165°C
Electrical Characteristics
Insulation resistance	5000 Megaohms min.

V.S.W.R	Straight: 1.3 Max, R/A: 1.5 Max
Insulation loss	0.3dB max @ 1.5 GHz ( Staight) 0.6dB max @ 1.5 GHz ( R/A)
Contact resistance
Center Contact	6 milliohms Max
Outer conductor	2 milliohms Max
V.S.W.R
Straight connector	1.3 max
Right angle connector	1.5 max
Dielectric withstanding voltage in VRMS	RG178: 500 VRMS min. RG316,.85″: 250 VRMS max RG142,.141″: 335 VRMS max
Working voltage in VRMS( at sea level )	–
Mechanical Characteristics
Cabling retention force	RG58, 141, 142,223….> 40 lbs min RG178, 196… >6 lbs min
Force to engage and disengage	2 in-lbms. Max
Coupling nut Torque recommended	15 in-lbs min
Coupling nut retention force	60 lbs. min
Environmental Characteristics
Thermal Shock	MIL-STD-202 Method 107 Test Cond B
Corrosion (salt spray)	MIL-STD-202 Method 101 Test Cond B
Vibration	MIL-STD-202 Method 204 Test Cond B
Shock	–
Materials
Body	Brass
Center contacts
Female	Beryllium Copper or Brass
Insulator	Teflon
Finish
Bodies	Nickel or Gold
Center contacts	Gold Plated
12VDC power output	–
Downloads
Datasheet (EN)	Download
