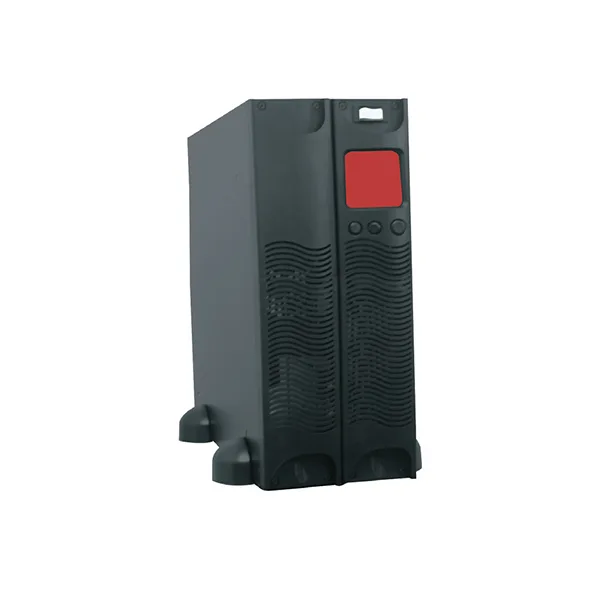

یو پی اس ولوسیتی VRU-3200
Warning: Trying to access array offset on value of type bool in /home/msdelect/public_html/sazankala.ir/wp-includes/media.php on line 800
Warning: Trying to access array offset on value of type bool in /home/msdelect/public_html/sazankala.ir/wp-includes/media.php on line 806
Warning: Trying to access array offset on value of type bool in /home/msdelect/public_html/sazankala.ir/wp-includes/media.php on line 800
Warning: Trying to access array offset on value of type bool in /home/msdelect/public_html/sazankala.ir/wp-includes/media.php on line 806
Warning: Trying to access array offset on value of type bool in /home/msdelect/public_html/sazankala.ir/wp-includes/media.php on line 800
Warning: Trying to access array offset on value of type bool in /home/msdelect/public_html/sazankala.ir/wp-includes/media.php on line 806
Warning: Trying to access array offset on value of type bool in /home/msdelect/public_html/sazankala.ir/wp-includes/media.php on line 800
Warning: Trying to access array offset on value of type bool in /home/msdelect/public_html/sazankala.ir/wp-includes/media.php on line 806
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
940,500,000 ﷼
| Subtypes | |
| VRU-3200 | True On-Line, Double Conversion |
| Basic Features | |
| On-Battery Output Waveform | True Sine Wave |
| Number of Phases | Single (1µ2W + G) |
| Input | |
| Maximum Capacity (VA /W) | 3200 VA/2240W |
| Nominal Input Voltage | 230 V |
| Input Voltage Regulation | 160 to 276 VAC |
| Nominal Input Frequency | 50 / 60 Hz +/- 5Hz |
| Input PFC | >0.98 @ full load |
| Input Short Protection | Circuit Breaker |
| Output | |
| Nominal Output Voltage | 208/220/230/240 VAC |
| Output THD | <3%@Linear Load |
| High-Efficiency Mode (AC to AC) | >88% |
| Crest Factor | 3:01 |
| Start on Battery | √ |
| Output Frequency | 50 / 60 Hz (Autotracking) |
| Overload Capability | Sustaining 50 sec@108% load: 28 sec@110-120% load ; 15 sec @120 – 130% load; 9 sec@140-145% load; Immediate Response@150% load |
| Battery | |
| User-Replaceable Battery | 96V (2×48 VDC Battery Pack) |
| Typical Backup Time (Full/Half Load) | 7 /18 minutes |
| Battery Type | Sealed VRLA 12V7AH; Hot Swap |
| Typical Backup Time (Full/Half Load) | 6 /17 minutes |
| Recharge Time to 90% | 8hours |
| Extended Battery Cabinet | Extendible Battery Module in 2U High (Comprises 2 x 48VDC Battery Packs |
| Advance Warning Diagnostics | |
| Front Panel Indication | Front Panel menu-driven LCD Monitoring and control panel for all functions |
| Audible Alarms | DC Mode, Low Battery, Voltage / Frequency Error, Charger Fail. High Temp, Over Load, Fault, PFC Overload |
| Communication Interface | |
| Communication Port | RS-232 Port (Standard) : DB9, AS400 , USB Cards (optional) |
| SNMP Manageable | √ |
| Environmental | |
| Operation Temperature | 0-40°c (32-104F) |
| Storage Temperature | -15-40°c (5-122F) |
| Relative Humidity | 0% to 95% non-condensing |
| Audible Noise (at 1 meter from surface of unit) | |
| Mechanical | X |
| Dimensions-Rackmount (W x H x D mm) | 426 x 88.4 x (2U) x 545 mm |
| Dimensions -Tower (W x H x D mm) | 88.4 x 426 x 545 mm |
| Weight (UPS / Battery Banks) | 13.5 / 32.5 kg |
| Total Weight | 46kg |
| Conformance | |
| EMI / RFI Compatibility | EN50091-2 Class B,EN55022B |
| Safety Certifications | CE, TUV/GS |
| Downloads | |
| Datasheet (EN) | Download |
حمل و نقل کالا
محصولات مرتبط
Warning: Trying to access array offset on value of type bool in /home/msdelect/public_html/sazankala.ir/wp-includes/media.php on line 800
Warning: Trying to access array offset on value of type bool in /home/msdelect/public_html/sazankala.ir/wp-includes/media.php on line 806
Warning: Trying to access array offset on value of type bool in /home/msdelect/public_html/sazankala.ir/wp-includes/media.php on line 800
Warning: Trying to access array offset on value of type bool in /home/msdelect/public_html/sazankala.ir/wp-includes/media.php on line 806

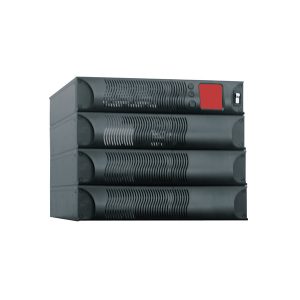

یو پی اس ولوسیتی VRU-6000
